Diffuser Grid





    The standard grid is made by HDPE which is very durable and can be used for many years. In Aquaculture, its Oxygen production ability is 1.2-3kg per hour. In sea water one grid can replace a 1.1kw paddlewheel.
We also provide different dimension of PVC grids( 5m,10m,15m, 20m PVC grids). The cost is lower than PE grid and customers can assemble it in their farms.

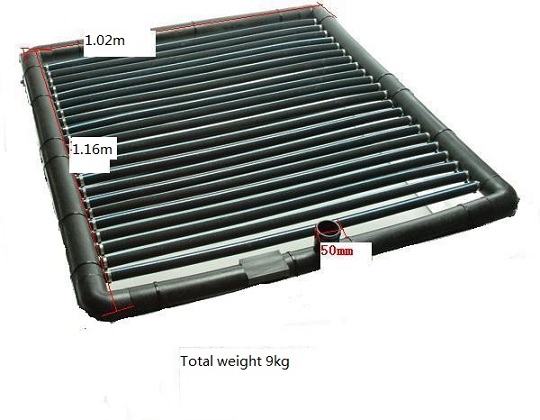

Parameter

Length 1.2m
width 1.05m
Length of Tubing 22m(OD25.4mm)
Suggested Airflow 44m3/hr
Headloss <7kpa
Main Fittings HDPE Frame, SS304 Clamps, Anti-Microbial Tubing.
